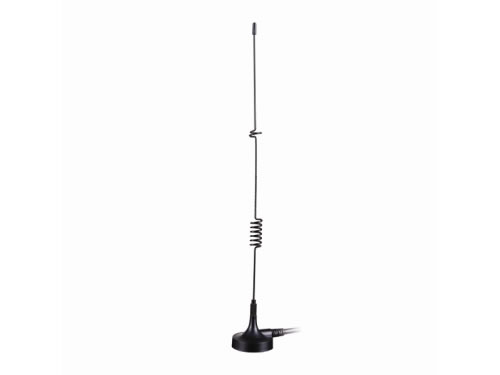

LTE Antenna
Description
LTE antennas are applied in 4G devices. They are used to receive GPS signals whose frequency covering 698 MHz to 960MHz, 1575.42MHz and 1710 MHz to 2700 MHz. A set of 4G LTE external antenna consists of PCB, enclosure, connector and cable.
Advantages
1. Omni-directional high gain and efficiency of LTE antenna ensures constant reception and transmission.
2. High waterproof and corrosion resistant housing makes 4G LTE external antenna resistant to bad weather and human sabotage.
Parameters of LTE Antenna
| Antenna | Frequency Range | 698 MHz to 2700 MHz |
| Polarization | Linear | |
| Gain | 2 dBi | |
| V.S.W.R | < 2.0 | |
| Impedance | 50Ω | |
| PCB Dimension | 104.6 × 15 × 1 (mm) | |
| Mechanical | Cable | RG174 |
| Connector | FAKRA/SMA or others | |
| Radome Material | ABS | |
| Mounting Method | Adhesive | |
| Environmental | Operating Temperature | Below 40℃ to 85℃ |
| Relative Humidity | Up to 95% | |
| Vibration | 10 Hz to 55 Hz with 1.5 mm Amplitude 2 Hours | |
| Environmentally Friendly | ROHS Compliant |
Introduction of LTE
LTE (long term evolution) is long term evolution of UMTS technology. It significantly increases spectral efficiency and data transmission rate by introducing OFDM and multi-antenna MIMO transmission technology. It supports various bandwidth allocations, such as 1.4MHz, 3MHz, 5MHz, 10MHz, 15MHz and 20MHz. Spectrum assignment of LET is more flexible. Its capacity and coverage has been improved a lot. LTE supports interoperation with other 3GPP system. FDD-LTE is a 4G standard which is widely used in the world and has abundant types of terminal.
Suggestions
1. We supply different types of LTE antenna. They can be mounted with magnet, screw or adhesive. You can select the proper type according to antenna’s installation location.
2. We can offer customization according to your special requirements for antenna, such as waterproof, salt spray resistant and anti UV.
3. The 4G LTE external antenna can not be covered by metal plate when working.
Service and Package
1. If there are any quality problems about our LTE antennas within one year after buying, we promise replacement. In addition, lifelong maintenance is offered for all of our products.
2. Each item is packaged with plastic bag and carton.
Jiashan Jinchang Electron Co., Ltd is engaged in high frequency antennas R&D, designing, manufacturing and selling for 28 years. Main products include GPS/GLONASS/COMPASS/GSM/CDMA/GPRS/WIFI/DAB-DVB/LTE antennas, various combo antennas, connectors and interface cables.
