GPS GSM Antenna
Description

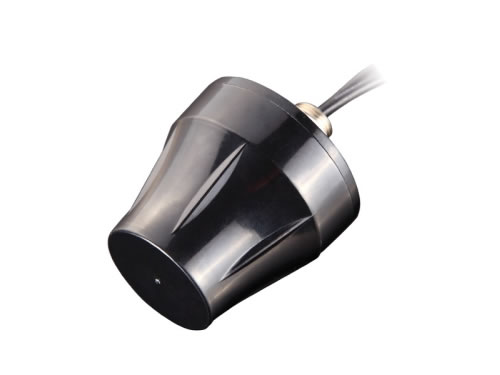

GPS/GSM combo antenna is powerful combination of a tuned two stage GPS active ceramic patch and a leading edge penta-band cellular antenna. It is ideal for applications that require durability, small size and covert installation, such as handsets and vehicles. GPS/GSM antenna can receive and transmit signals crossing through different mobile networks. A full set of GPS/GSM combination antenna consists of ceramic patch antenna, LNA, cable, connector and housing.
Advantages
1. GPS/GSM combo antenna is of great corrosion resistance. All of our products have been through 48 hours’ salt spray test.
2. All of our products have been through five test sessions and FAQ sampling inspection on production line. The first pass yield reaches 99%.
3. 28 years’ antenna manufacturing experience makes Jinchang Electron professional in antenna industry.
4. GPS/GSM combo antennas are water proof (Waterproof level is IP67).
Parameters of GPS/GSM Combination Antenna
| GPS Antenna | Dielectric Antenna | Center Frequency | 1575.42 ± 1 (MHz) |
| Band Width | CF ± 5 MHz | ||
| Polarization | RHCP | ||
| Gain | 5 dBic (Zenith) | ||
| V.S.W.R | < 1.5 | ||
| Impedance | 50 Ω | ||
| Axial Ratio | 3dB (Max.) | ||
| LNA | Gain | 28 ± 2 (dB) | |
| Noise Figure | < 1.5 | ||
| Ex-band Attenuation | 12 dB at CF + 50 MHz/16 dB at CF - 50 MHz | ||
| V.S.W.R | < 2.0 | ||
| Supply Voltage | 2.2 V to 5 V DC | ||
| Current Consumption | 5 mA to 15 mA | ||
| GSM Antenna | Frequency Range | 824 MHz to 960 MHz/1710 MHz to 2170 MHz | |
| V.S.W.R | < 2.0 | ||
| Polarization | Linear | ||
| Gain | 2 dBi | ||
| Impedance | 50 Ω | ||
| Mechanical | Cable | RG174 | |
| Connector | SMA/MCX/FAKRA or others | ||
| Radome Material | ABS | ||
| Mounting Method | Magnet/Adhesive | ||
| Environmental | Operating Temperature | Below 40℃ to 85℃ | |
| Relative Humidity | Up to 95% | ||
| Ingress Protection | IP67 | ||
| Vibration | 10 Hz to 55 Hz with 1.5mm Amplitude 2 Hours | ||
| Environmentally Friendly | ROHS Compliant | ||
Notice
1. Please make sure that the signal receiving direction of antenna is not covered by metal sheet.
2. GPS/GSM combo antennas can be mounted with magnet to attract or adhesive to paste. You can select antennas with different mounting methods according to your installation location. If your antenna can be fastened with adhesive, make sure that the paste face of antenna is upward.
3. If any quality problems are found about our combination antennas within one year after buying, we promise refund or replacement.
4. Lifelong maintenance is provided for all of our GPS/GSM combo antennas.
Package
Every GPS/GSM antenna is packaged with plastic bag, small white box and carton.
Jinchang is a professional manufacturer of GPS/GSM combo antenna. 28 years’ experience and more than 30 R&D engineers on antenna development guarantee that our products have been leading antenna industry. Our main products include GPS antennas, GSM antennas WIFI antennas, combination antennas, cable assemblies and connectors. Our products are widely used in communication industry.
