GPS External Antenna
Description

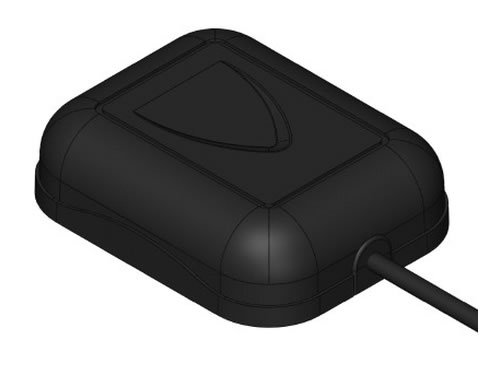

The GPS external antenna receives and transmits signals to device or sends signals radiated by device to free space via signal line. Our GPS antennas are mainly applied in navigation and positioning devices to receive and transmit GPS signals.
A whole set of external antenna is composed of a ceramic patch antenna, LNA, cable, connector and housing. Antennas of different appearances and mounting methods are provided. You also have option on connector and length of wire according to your requirements.
Features
1. All of our GPS external antennas have passed five test sessions and FAQ sampling inspection in production process.
2. Advance technology guarantees our products are with strong capability of receiving signals.
3. External antennas are resistant to water. The water-proof grade is IP67.
4. GPS antennas of this type are anti-corrosion. Our antennas have passed 48-hour spray test.
Parameters
| Item | Specifications | |
| Antenna | Center Frequency | 1575.42 ± 1 (MHz) |
| Band Width | CF ± 5 MHz | |
| Polarization | RHCP | |
| Gain | 5 dBic (Zenith) | |
| V.S.W.R | < 1.5 | |
| Impedance | 50Ω | |
| Axial Ratio | 3 dB (Max) | |
| Dimension | 25 × 25 × 4 (mm) | |
| LNA | Gain | 28 ± 2 (dB) |
| Noise Figure | < 1.5 | |
| Filter Insertion Loss | < 3dB | |
| Ex-band Attenuation | 12 dB at CF + 50 MHz/16 dB at CF - 50 MHz | |
| Supply Voltage | 2.2 V to 5 V DC | |
| Current Consumption | 5 mA to 15 mA | |
| Cable | RG174 | |
| Connector | SMA/MCX/FAKRA or others | |
| Housing | ABS | |
Suggestions
1. GPS external antennas can be mounted by adsorbing with magnet, pasting with adhesive or fastening with screw according to different mounting locations.
2. This GPS antenna can not be covered by metal plate in the direction of receiving signals.
3. If there is any quality problems after buying, you have right to ask replacement or refund within one year. Besides, we offer maintenance for a lifetime.
Package
Each GPS external antenna is packaged with plastic bag, small white box and carton (49.35 cm × 22.5 cm × 27 cm).
