GPS WIFI Antenna
Description

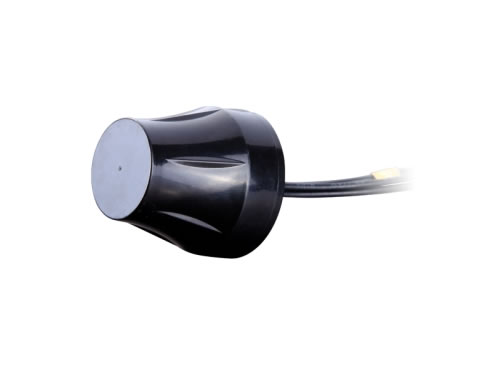

A set of GPS/WIFI combo antenna consists of ceramic patch antenna, LNA, cable, connector and housing. It is a low profile, heavy-duty, waterproof (IP67) external M2M combination antenna for use in telematics, transportation and remote monitoring applications.
Advantages
1. Our combination antennas are resistant to corrosion. All of them have gone through 48-hour salt spray test.
2. We have 28 years’ experience and more than 30 engineers for antennas’ development.
3. 99% of our products are qualified at the first inspection.
4. GPS/WIFI combo antenna can be mounted with magnet or adhesive, which is fast and easy.
Parameters
| GPS Antenna | Dielectric Antenna | Center Frequency | 1575.42 ± 1 (MHz) |
| Band Width | CF ± 5 (MHz) | ||
| Polarization | RHCP | ||
| Gain | 5 dBic (Zenith) | ||
| V.S.W.R | < 1.5 | ||
| Impedance | 50 Ω | ||
| Axial Ratio | 3 dB(Max) | ||
| LNA | Gain | 28 ± 2 (dB) | |
| Noise Figure | < 1.5 | ||
| Ex-band Attenuation | 12 dB at CF + 50 MHz/16 dB at CF - 50 MHz | ||
| V.S.W.R | < 2.0 | ||
| Supply Voltage | 2.2 V to 5 V DC | ||
| Current Consumption | 5 mA to 15 mA | ||
| WIFI Antenna | Frequency Range | 2.4 GHz to 2.5 GHz | |
| V.S.W.R | < 2.0 | ||
| Polarization | Linear | ||
| Gain | 2 dBi | ||
| Impedance | 50 Ω | ||
| Mechanical | Cable | RG174 | |
| Connector | SMA/MCX/FAKRA or others | ||
| Radome Material | ABS | ||
| Mounting Method | Magnet/Adhesive | ||
| Environmental | Operating Temperature | Below 40℃ to 85℃ | |
| Relative Humidity | Up to 95% | ||
| Ingress Protection | IP67 | ||
| Vibration | 10 to 55Hz with 1.5mm Amplitude 2 Hours | ||
| Environmentally Friendly | ROHS Compliant | ||
Attentions
1. Please make sure that the signal receiving direction of antenna is not covered by metal sheet.
2. GPS/WIFI combo antennas can be mounted with magnet to attract or adhesive to paste. You can select antennas with different mounting methods according to your installation location. If your antenna can be fastened with adhesive, make sure that the paste face of antenna is upward.
3. If any quality problems are found about our combination antennas within one year after buying, we guarantee replacement.
4. Lifelong maintenance is provided for all of our GPS/WIFI combo antennas.
Package
Each GPS/WIFI antenna is packaged with plastic bag, small white box and carton.
Jinchang Company is a professional Chinese manufacturer of GPS/WIFI combo antenna. 28 years’ experience and more than 30 R&D engineers on antenna development guarantee that our products have been leading antenna industry. Our main products include GPS antennas, GSM antennas WIFI antennas, combination antennas, cable assemblies and connectors, which are widely used in communication industry.
