GPS GSM WIFI Antenna
Description

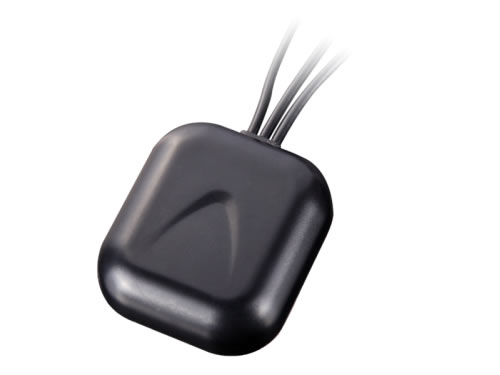

GPS/GSM/WIFI antenna is a low profile, heavy-duty, corrosion resistant external M2M (machine to machine) antenna for use in telematics, transportation and remote monitoring applications. This combination antenna is mainly applied to receive and transmit signals in navigation or positioning devices. It is composed of ceramic patch antenna, LNA, cable, connector and housing.
Models of GPS/GSM/WIFI Antenna
1. JCE058
2. JCE008
Advantages
1. High quality of our antennas is guaranteed. All of the products have gone through five tests sessions on production line and the first pass yield is 99%.
2. High water proof level IP67 is one of our antennas’ features.
3. GPS/GSM/WIFI antenna is mounted with screw, which is very simple and convenient.
4. This combination antenna can collect signals in an extended frequency range.
5. 28 years’ experience on antenna development ensures that our products are in leading edge.
Parameters of GPS/GSM/WIFI Combination Antenna
| GPS Antenna | Dielectric Antenna | Center Frequency | 1575.42 ± 1 (MHz) |
| Band Width | CF ± 5 (MHz) | ||
| Polarization | RHCP | ||
| Gain | 5 dBic (Zenith) | ||
| V.S.W.R | < 1.5 | ||
| Impedance | 50 Ω | ||
| Axial Ratio | 3dB (Max) | ||
| LNA | Gain | 28 ± 2 (dB) | |
| Noise Figure | < 1.5 | ||
| Ex-band Attenuation | 12 dB at CF + 50 MHz/16 dB at CF - 50 MHz | ||
| V.S.W.R | < 2.0 | ||
| Supply Voltage | 2.2 V to 5 V DC | ||
| Current Consumption | 5 mA to15 mA | ||
| GSM Antenna | Frequency Range | 824 MHz to 960 MHz/1710 MHz to 2170 MHz | |
| V.S.W.R | < 2.0 | ||
| Polarization | Linear | ||
| Gain | 2.0 dBi | ||
| Impedance | 50 Ω | ||
| WIFI Antenna | Frequency Range | 2400 MHz to2483.5 MHz | |
| Band Width | 83.5 MHz | ||
| Polarization | Linear | ||
| Gain | 3 dBi | ||
| V.S.W.R | < 2.0 | ||
| Impedance | 50Ω | ||
| Mechanical | Cable | RG174 | |
| Connector | SMA/MCX/FAKRA or others | ||
| Material | ABS | ||
| Mounting Method | Screw | ||
| Environmental | Operating Temperature | Below 40℃ to 85℃ | |
| Relative Humidity | Up to 95% | ||
| Ingress Protection | IP67 (Excluding Cable Outlet) | ||
| Vibration | 10 Hz to 55 Hz with 1.5mm Amplitude 2 Hours | ||
| Environmentally Friendly | ROHS Compliant | ||
Notes
1. If there are any quality problems of GPS/GSM/WIFI antennas, we guarantee replacement within one year.
2. Our combination antennas can enjoy lifetime maintenance.
3. The signal receiving direction of antenna can’t be covered by metal sheet.
Package
Each GPS/GSM/WIFI antenna is packed with plastic bag, small white case and carton.
