3G Antenna
Description
3rd-generation (3G) technology is a cellular mobile communication technology. 3G antenna is developed by utilizing this mobile communication technology. This omni-directional antenna is extensively applied to receive GSM/CDMA/PCS/DCS/UMTS/WCDMA signals. It consists of PCB, enclosure, connector and cable.
Advantages
1. All of our 3G antennas have passed five test sessions and FAQ sampling inspection in production process.
2. Advance technology guarantees our products are with strong capability of receiving signals.
3. 3G omni-directional antennas are resistant to water. The water-proof grade is IP67.
4. This GSM antenna is with anti-corrosion. All of our antennas have passed 48-hour spray test.
Parameters of 3G Antenna
| Antenna | Frequency Range | 824 to 960/1710 to 2170 (MHz) |
| Polarization | Linear | |
| Gain | 2 dBi | |
| V.S.W.R | < 2.0 | |
| Impedance | 50Ω | |

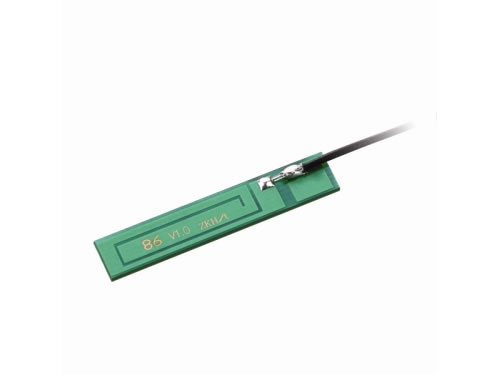

| PCB Dimension | 104.6 × 15 × 1 (mm) | |
| Mechanical | Cable | RG174 |
| Connector | FAKRA/SMA or others | |
| Radome Material | ABS | |
| Mounting Method | Adhesive | |
| Environmental | Operating Temperature | Below 40℃ to 85℃ |
| Relative Humidity | Up to 95% | |
| Vibration | 10 Hz to 55 Hz with 1.5 mm Amplitude 2 Hours | |
| Environmentally Friendly | ROHS Compliant |
Introduction of 3G
3G is a new generation of mobile communication system combining wireless communication and internet. 3G service can transmit sounds and data at the same time and transmission speed is very fast (over several hundred kbps). Nowadays, there are four standards of 3G including CDMA2000, WCDMA, TD-SCDMA and WiMAX.
Attentions
1. We supply different types of 3G antenna. They can be mounted with magnet, screw or adhesive. You can select the proper type according to antenna’s installation sites.
2. Customization service is offered based on your special requirements of waterproof, salt spray resistance and anti-UV.
3. The 3G omni-directional antenna can not be covered by metal plate when working in case the signals are disturbed.
Service and Package
1. If there are any quality problems about our 3G antennas within one year after buying, we promise replacement. In addition, lifelong maintenance is offered for all of our products.
2. Each item is packaged with plastic bag and carton.
Jinchang Electron is a professional 3G antenna manufacturer in China who has 28 years’ experience. Our products include various antennas, combo antennas and interface wires and connectors for antennas. 70% of our 3G omni-directional antennas are exported to abroad, such as Europe and America.
